Grabando el Bootloader de Arduino atmeg328



Este es un Tutorial de como Cargar el bootloader uno al Atmega328 para poder Armar nuestros propios Arduinos

Debes copiar el Siguiente Scketch en la consola de Arduino

// ArduinoISP version 04m3
// Copyright (c) 2008-2011 Randall Bohn
// If you require a license, see
//     http://www.opensource.org/licenses/bsd-license.php
//
// This sketch turns the Arduino into a AVRISP

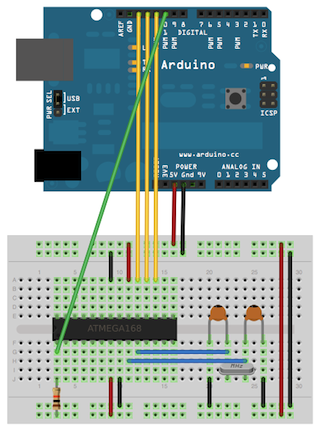

// using the following arduino pins:
//
// pin name:    not-mega:         mega(1280 and 2560)
// slave reset: 10:               53
// MOSI:        11:               51
// MISO:        12:               50
// SCK:         13:               52
//
// Put an LED (with resistor) on the following pins:
// 9: Heartbeat   - shows the programmer is running
// 8: Error       - Lights up if something goes wrong (use red if that makes sense)
// 7: Programming - In communication with the slave
//
// 23 July 2011 Randall Bohn
// -Address Arduino issue 509 :: Portability of ArduinoISP
// http://code.google.com/p/arduino/issues/detail?id=509
//
// October 2010 by Randall Bohn
// - Write to EEPROM > 256 bytes
// - Better use of LEDs:
// -- Flash LED_PMODE on each flash commit
// -- Flash LED_PMODE while writing EEPROM (both give visual feedback of writing progress)
// - Light LED_ERR whenever we hit a STK_NOSYNC. Turn it off when back in sync.
// - Use pins_arduino.h (should also work on Arduino Mega)
//
// October 2009 by David A. Mellis
// - Added support for the read signature command
//
// February 2009 by Randall Bohn
// - Added support for writing to EEPROM (what took so long?)
// Windows users should consider WinAVR's avrdude instead of the
// avrdude included with Arduino software.
//
// January 2008 by Randall Bohn
// - Thanks to Amplificar for helping me with the STK500 protocol
// - The AVRISP/STK500 (mk I) protocol is used in the arduino bootloader
// - The SPI functions herein were developed for the AVR910_ARD programmer
// - More information at http://code.google.com/p/mega-isp

#include "pins_arduino.h"
#define RESET     SS

#define LED_HB    9
#define LED_ERR   8
#define LED_PMODE 7
#define PROG_FLICKER true

#define HWVER 2
#define SWMAJ 1
#define SWMIN 18

// STK Definitions
#define STK_OK      0x10
#define STK_FAILED  0x11
#define STK_UNKNOWN 0x12
#define STK_INSYNC  0x14
#define STK_NOSYNC  0x15
#define CRC_EOP     0x20 //ok it is a space...

void pulse(int pin, int times);

void setup() {
  Serial.begin(19200);
  pinMode(LED_PMODE, OUTPUT);
  pulse(LED_PMODE, 2);
  pinMode(LED_ERR, OUTPUT);
  pulse(LED_ERR, 2);
  pinMode(LED_HB, OUTPUT);
  pulse(LED_HB, 2);
}

int error=0;
int pmode=0;
// address for reading and writing, set by 'U' command
int here;
uint8_t buff[256]; // global block storage

#define beget16(addr) (*addr * 256 + *(addr+1) )
typedef struct param {
  uint8_t devicecode;
  uint8_t revision;
  uint8_t progtype;
  uint8_t parmode;
  uint8_t polling;
  uint8_t selftimed;
  uint8_t lockbytes;
  uint8_t fusebytes;
  int flashpoll;
  int eeprompoll;
  int pagesize;
  int eepromsize;
  int flashsize;
}
parameter;

parameter param;

// this provides a heartbeat on pin 9, so you can tell the software is running.
uint8_t hbval=128;
int8_t hbdelta=8;
void heartbeat() {
  if (hbval > 192) hbdelta = -hbdelta;
  if (hbval < 32) hbdelta = -hbdelta;
  hbval += hbdelta;
  analogWrite(LED_HB, hbval);
  delay(20);
}


void loop(void) {
  // is pmode active?
  if (pmode) digitalWrite(LED_PMODE, HIGH);
  else digitalWrite(LED_PMODE, LOW);
  // is there an error?
  if (error) digitalWrite(LED_ERR, HIGH);
  else digitalWrite(LED_ERR, LOW);

  // light the heartbeat LED
  heartbeat();
  if (Serial.available()) {
    avrisp();
  }
}

uint8_t getch() {
  while(!Serial.available());
  return Serial.read();
}
void fill(int n) {
  for (int x = 0; x < n; x++) {
    buff[x] = getch();
  }
}

#define PTIME 30
void pulse(int pin, int times) {
  do {
    digitalWrite(pin, HIGH);
    delay(PTIME);
    digitalWrite(pin, LOW);
    delay(PTIME);
  }
  while (times--);
}

void prog_lamp(int state) {
  if (PROG_FLICKER)
    digitalWrite(LED_PMODE, state);
}

void spi_init() {
  uint8_t x;
  SPCR = 0x53;
  x=SPSR;
  x=SPDR;
}

void spi_wait() {
  do {
  }
  while (!(SPSR & (1 << SPIF)));
}

uint8_t spi_send(uint8_t b) {
  uint8_t reply;
  SPDR=b;
  spi_wait();
  reply = SPDR;
  return reply;
}

uint8_t spi_transaction(uint8_t a, uint8_t b, uint8_t c, uint8_t d) {
  uint8_t n;
  spi_send(a);
  n=spi_send(b);
  //if (n != a) error = -1;
  n=spi_send(c);
  return spi_send(d);
}

void empty_reply() {
  if (CRC_EOP == getch()) {
    Serial.print((char)STK_INSYNC);
    Serial.print((char)STK_OK);
  }
  else {
    error++;
    Serial.print((char)STK_NOSYNC);
  }
}

void breply(uint8_t b) {
  if (CRC_EOP == getch()) {
    Serial.print((char)STK_INSYNC);
    Serial.print((char)b);
    Serial.print((char)STK_OK);
  }
  else {
    error++;
    Serial.print((char)STK_NOSYNC);
  }
}

void get_version(uint8_t c) {
  switch(c) {
  case 0x80:
    breply(HWVER);
    break;
  case 0x81:
    breply(SWMAJ);
    break;
  case 0x82:
    breply(SWMIN);
    break;
  case 0x93:
    breply('S'); // serial programmer
    break;
  default:
    breply(0);
  }
}

void set_parameters() {
  // call this after reading paramter packet into buff[]
  param.devicecode = buff[0];
  param.revision   = buff[1];
  param.progtype   = buff[2];
  param.parmode    = buff[3];
  param.polling    = buff[4];
  param.selftimed  = buff[5];
  param.lockbytes  = buff[6];
  param.fusebytes  = buff[7];
  param.flashpoll  = buff[8];
  // ignore buff[9] (= buff[8])
  // following are 16 bits (big endian)
  param.eeprompoll = beget16(&buff[10]);
  param.pagesize   = beget16(&buff[12]);
  param.eepromsize = beget16(&buff[14]);

  // 32 bits flashsize (big endian)
  param.flashsize = buff[16] * 0x01000000
    + buff[17] * 0x00010000
    + buff[18] * 0x00000100
    + buff[19];

}

void start_pmode() {
  spi_init();
  // following delays may not work on all targets...
  pinMode(RESET, OUTPUT);
  digitalWrite(RESET, HIGH);
  pinMode(SCK, OUTPUT);
  digitalWrite(SCK, LOW);
  delay(50);
  digitalWrite(RESET, LOW);
  delay(50);
  pinMode(MISO, INPUT);
  pinMode(MOSI, OUTPUT);
  spi_transaction(0xAC, 0x53, 0x00, 0x00);
  pmode = 1;
}

void end_pmode() {
  pinMode(MISO, INPUT);
  pinMode(MOSI, INPUT);
  pinMode(SCK, INPUT);
  pinMode(RESET, INPUT);
  pmode = 0;
}

void universal() {
  int w;
  uint8_t ch;

  fill(4);
  ch = spi_transaction(buff[0], buff[1], buff[2], buff[3]);
  breply(ch);
}

void flash(uint8_t hilo, int addr, uint8_t data) {
  spi_transaction(0x40+8*hilo,
  addr>>8 & 0xFF,
  addr & 0xFF,
  data);
}
void commit(int addr) {
  if (PROG_FLICKER) prog_lamp(LOW);
  spi_transaction(0x4C, (addr >> 8) & 0xFF, addr & 0xFF, 0);
  if (PROG_FLICKER) {
    delay(PTIME);
    prog_lamp(HIGH);
  }
}

//#define _current_page(x) (here & 0xFFFFE0)
int current_page(int addr) {
  if (param.pagesize == 32)  return here & 0xFFFFFFF0;
  if (param.pagesize == 64)  return here & 0xFFFFFFE0;
  if (param.pagesize == 128) return here & 0xFFFFFFC0;
  if (param.pagesize == 256) return here & 0xFFFFFF80;
  return here;
}


void write_flash(int length) {
  fill(length);
  if (CRC_EOP == getch()) {
    Serial.print((char) STK_INSYNC);
    Serial.print((char) write_flash_pages(length));
  }
  else {
    error++;
    Serial.print((char) STK_NOSYNC);
  }
}

uint8_t write_flash_pages(int length) {
  int x = 0;
  int page = current_page(here);
  while (x < length) {
    if (page != current_page(here)) {
      commit(page);
      page = current_page(here);
    }
    flash(LOW, here, buff[x++]);
    flash(HIGH, here, buff[x++]);
    here++;
  }

  commit(page);

  return STK_OK;
}

#define EECHUNK (32)
uint8_t write_eeprom(int length) {
  // here is a word address, get the byte address
  int start = here * 2;
  int remaining = length;
  if (length > param.eepromsize) {
    error++;
    return STK_FAILED;
  }
  while (remaining > EECHUNK) {
    write_eeprom_chunk(start, EECHUNK);
    start += EECHUNK;
    remaining -= EECHUNK;
  }
  write_eeprom_chunk(start, remaining);
  return STK_OK;
}
// write (length) bytes, (start) is a byte address
uint8_t write_eeprom_chunk(int start, int length) {
  // this writes byte-by-byte,
  // page writing may be faster (4 bytes at a time)
  fill(length);
  prog_lamp(LOW);
  for (int x = 0; x < length; x++) {
    int addr = start+x;
    spi_transaction(0xC0, (addr>>8) & 0xFF, addr & 0xFF, buff[x]);
    delay(45);
  }
  prog_lamp(HIGH);
  return STK_OK;
}

void program_page() {
  char result = (char) STK_FAILED;
  int length = 256 * getch();
  length += getch();
  char memtype = getch();
  // flash memory @here, (length) bytes
  if (memtype == 'F') {
    write_flash(length);
    return;
  }
  if (memtype == 'E') {
    result = (char)write_eeprom(length);
    if (CRC_EOP == getch()) {
      Serial.print((char) STK_INSYNC);
      Serial.print(result);
    }
    else {
      error++;
      Serial.print((char) STK_NOSYNC);
    }
    return;
  }
  Serial.print((char)STK_FAILED);
  return;
}

uint8_t flash_read(uint8_t hilo, int addr) {
  return spi_transaction(0x20 + hilo * 8,
  (addr >> 8) & 0xFF,
  addr & 0xFF,
  0);
}

char flash_read_page(int length) {
  for (int x = 0; x < length; x+=2) {
    uint8_t low = flash_read(LOW, here);
    Serial.print((char) low);
    uint8_t high = flash_read(HIGH, here);
    Serial.print((char) high);
    here++;
  }
  return STK_OK;
}

char eeprom_read_page(int length) {
  // here again we have a word address
  int start = here * 2;
  for (int x = 0; x < length; x++) {
    int addr = start + x;
    uint8_t ee = spi_transaction(0xA0, (addr >> 8) & 0xFF, addr & 0xFF, 0xFF);
    Serial.print((char) ee);
  }
  return STK_OK;
}

void read_page() {
  char result = (char)STK_FAILED;
  int length = 256 * getch();
  length += getch();
  char memtype = getch();
  if (CRC_EOP != getch()) {
    error++;
    Serial.print((char) STK_NOSYNC);
    return;
  }
  Serial.print((char) STK_INSYNC);
  if (memtype == 'F') result = flash_read_page(length);
  if (memtype == 'E') result = eeprom_read_page(length);
  Serial.print(result);
  return;
}

void read_signature() {
  if (CRC_EOP != getch()) {
    error++;
    Serial.print((char) STK_NOSYNC);
    return;
  }
  Serial.print((char) STK_INSYNC);
  uint8_t high = spi_transaction(0x30, 0x00, 0x00, 0x00);
  Serial.print((char) high);
  uint8_t middle = spi_transaction(0x30, 0x00, 0x01, 0x00);
  Serial.print((char) middle);
  uint8_t low = spi_transaction(0x30, 0x00, 0x02, 0x00);
  Serial.print((char) low);
  Serial.print((char) STK_OK);
}
//////////////////////////////////////////
//////////////////////////////////////////


////////////////////////////////////
////////////////////////////////////
int avrisp() {
  uint8_t data, low, high;
  uint8_t ch = getch();
  switch (ch) {
  case '0': // signon
    error = 0;
    empty_reply();
    break;
  case '1':
    if (getch() == CRC_EOP) {
      Serial.print((char) STK_INSYNC);
      Serial.print("AVR ISP");
      Serial.print((char) STK_OK);
    }
    break;
  case 'A':
    get_version(getch());
    break;
  case 'B':
    fill(20);
    set_parameters();
    empty_reply();
    break;
  case 'E': // extended parameters - ignore for now
    fill(5);
    empty_reply();
    break;

  case 'P':
    start_pmode();
    empty_reply();
    break;
  case 'U': // set address (word)
    here = getch();
    here += 256 * getch();
    empty_reply();
    break;

  case 0x60: //STK_PROG_FLASH
    low = getch();
    high = getch();
    empty_reply();
    break;
  case 0x61: //STK_PROG_DATA
    data = getch();
    empty_reply();
    break;

  case 0x64: //STK_PROG_PAGE
    program_page();
    break;

  case 0x74: //STK_READ_PAGE 't'
    read_page();
    break;

  case 'V': //0x56
    universal();
    break;
  case 'Q': //0x51
    error=0;
    end_pmode();
    empty_reply();
    break;

  case 0x75: //STK_READ_SIGN 'u'
    read_signature();
    break;

    // expecting a command, not CRC_EOP
    // this is how we can get back in sync
  case CRC_EOP:
    error++;
    Serial.print((char) STK_NOSYNC);
    break;

    // anything else we will return STK_UNKNOWN
  default:
    error++;
    if (CRC_EOP == getch())
      Serial.print((char)STK_UNKNOWN);
    else
      Serial.print((char)STK_NOSYNC);
  }
}

Luego le dan al Boton Cargar

Cuando haya terminado la carga desconectan el Arduino y pasamos a conectar el atmega 328 como la siguiente imagen

Para referencia de pines puedes guiarte en la siguiente imagen

Conectamos el Arduino a la PC

Vamos a Herramientas y en Programador Seleccionamos ARDUINO AS ISP

Volvemos a Herramientas y hacemos click en QUEMAR BOOTLOADER

Cuando Figura SUBIDO, desconectamos el Arduino de la pc y sacamos todos los cables

Volvemos a conectar el Arduino a la PC

Vamos a Herramientas y en Programador volvemos a poner el Que teniamos : AVR ISP

y para dejar el Arduino que usamos como cargador al Estado normal, le cargamos un Scketch Vacio y listo !!

Tutorial realizado Gracias a El Profe Garcia  http://elprofegarcia.com/

Deja un comentario

Tu dirección de correo electrónico no será publicada. Los campos obligatorios están marcados con *

Puedes usar las siguientes etiquetas y atributos HTML: <a href="" title=""> <abbr title=""> <acronym title=""> <b> <blockquote cite=""> <cite> <code> <del datetime=""> <em> <i> <q cite=""> <s> <strike> <strong>
